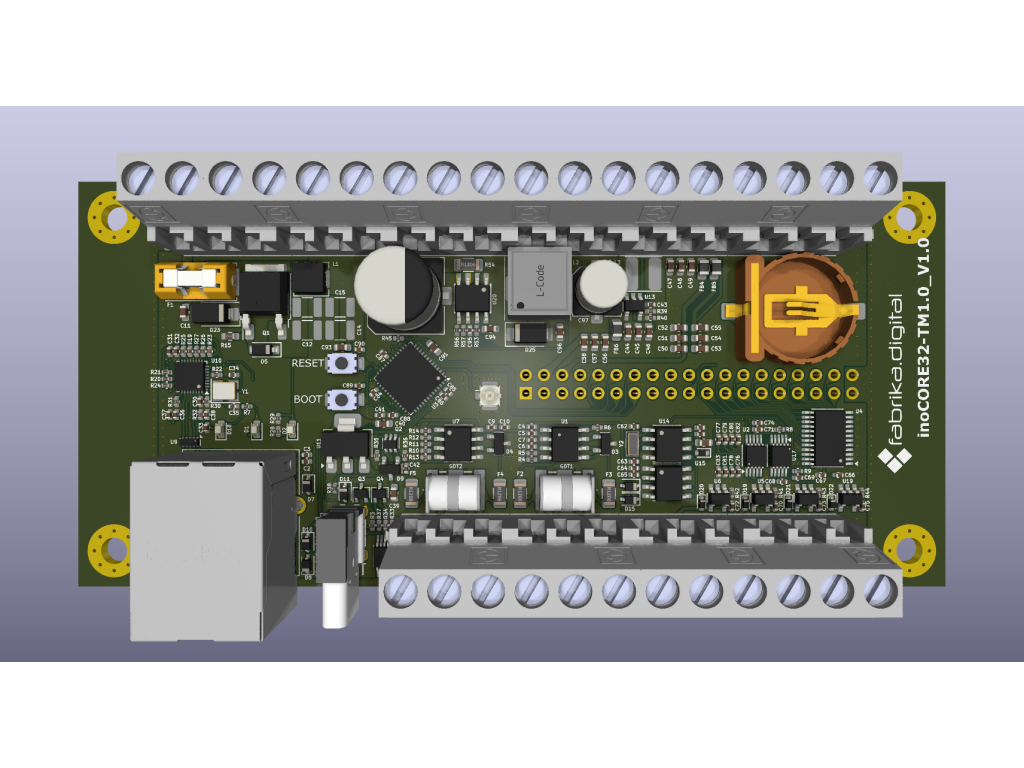

inoCORE32 TM1.0
IoT module based on ESP32-V3-PICO with Ethernet, CAN, RS485, RTC, EEPROM 256k, 8x16Bit analog input, 16x digital input/output. Power supply 8-60 VDC
| Category: | IoT Modules |
|---|---|
| supply: | 24vdc |
Garancia doručenia
nepoškodeného tovaru
Darček zdarma
Ku každej objednávke
Cez 3000 výdajných miest
po celom Slovensku
Doručenie do druhého dňa
na akúkoľvek adresu
inoCORE TM1.0
CPU chip: ESP32-PICO-V3
ETHERNET chip: IP101GRI
| ETHERNET chip | |
|---|---|
| IP101GRI | |
| MDC | GPIO2 |
| MDIO | GPIO20 |
| RMII_TXD0 | GPIO19 |
| RMII_TXD1 | GPIO22 |
| RMII_TXEN | GPIO21 |
| RMII_RXD0 | GPIO25 |
| RMII_RXD1 | GPIO26 |
| RMII_RXDV | GPIO27 |
| RMII_CLK | GPIO0 |
| RESET_ETH | GPIO5 |
-
-
-
-
------------CAN------------
RxD_CAN - GPIO11
TxD_CAN - GPIO6
CAN chip: SIT65HVD230DR
-----------RS485-----------
RxD_485 - GPIO10
RTX_485 - GPIO9
TxD_485 - GPIO15
RS485 chip: SP3485EN
-----------I2C-------------
SDA_I2C - GPIO7
SCL_I2C - GPIO8
RTC_chip - PCF8563T
EEPROM chip - 24LC256-I/SN
DIO_expander chip - TCA9555PWR I2C ADDR: 0x20h
AI chip - ADS1115IDGSR I2C ADDR: 0x48h
AI chip - ADS1115IDGSR I2C ADDR: 0x49h
----------WLED-DO----------
NEO_LED0 - GPIO4
NEO_LED1 - GPIO13
NEO_LED2 - GPIO12
NEO_LED3 - GPIO14
